P6.944 P8.928 P10.416mm Curved Curtain Mesh Rental led display Stage,Event and TV Show
Arise Technology Co., Ltd
Email:gm@ariseled.com; Web:http://www.ariseled.com QQ:2329518805 Skype:ariseled
TechnicalSpecification (Curved Curtain Mesh Rental led display)
| Pixel Pitch | 6.944mm | 6.944mm | 8.928mm | 10.416mm |
| Pixel Configuration | 3-in-1 SMD 3535 | 3-in-1 SMD 3528 | 3-in-1 SMD3528(or3535) | 3-in-1 SMD3528(or3535) |
| Module Resolution | 72x36 | 72x36 | 56x28 | 48x24 |
| Pixel Per Module | 2,592 | 2,592 | 1,568 | 1,152 |
| Module Size | 500mm x250mm | 500mm x250mm | 500mm x250mm | 500mm x250mm |
| Pixel Density | 20,738pixels/m | 20,738pixels/m | 12,544pixels/m | 9,217pixels/m |
| Mins Viewing Distance | 7m | 7m | 9m | 10.4m |
| Brightness | >4,000cd/m | >1,200cd/m | >5,000or>1,500cd/m | >3,000or>1,200cd/m |
| Color Temperature | 6,500 k-10,000 k | 6,500 k-10,000 k | 6,500 k-10,000 k | 6,500 k-10,000 k |
| Contrast Ratio | 10,000:1 | 10,000:1 | 6,000:1 | 6,000:1 |
| Viewing Angle(H/V) | H:120/V:120 | H:120/V:120 | H:120/V:120 | H:120/V:120 |
| Cabinet Pixel Matrix | 72x72 | 72x144 | 56x56 | 48x96 |
| Cabinet Size | 500mm x500mm x51mm | 500mm x1000mm x51mm | 500mm x500mm x80mm | 500mm x1000mm x80m |
| Cabinet Material | Extruded Aluminum | Extruded Aluminum | Extruded Aluminum | Extruded Aluminum |
| Cabinet Weight | =6kG | =12KG | =6KG,=12KG | =12KG |
| Colors | 16bits x RGB | 16bits x RGB | 16bits x RGB | 16bits x RGB |
| Grayscale(Linear) | 12bits | 12bits | 12bits | 12bits |
| Brightness Control | 100 Levels | 100Levels | 100Levels | 100Levels |
| Video Frame Rate | >60Hertz | >60Hertz | >60Hertz | >60Hertz |
| Display Refresh Rate | >1,200Hertz | >1,200Hertz | >1,200Hertz | >1.200Hertz |
| Driving Method | 1/9 | 1/9 | 1/7 | 1/4 |
| input Voltage (Nominal) | AC110V/220V/110-220V | AC110V/220V/110-220V | AC110V/220V/110-220V | AC110V/220V/110-220V |
| input Power Frequency | 50/60Hertz | 50/60Hertz | 50/60Hertz | 50/60Hertz |
| input Power(Max) | 520W/m | 520W/m | 400W/m | 700W/m |
| input Power(Average) | 260W/m | 260W/m | 200W/m | 350W/m |
| Working Temperature | -20 C-40 C | -20 C-40 C | -20 C-40 C | -20 C-40 C |
| Storage Temperature | -35 C-85 C | -35 C-85 C | -35 C-85 C | -35 C-85 C |
| Working Humidity | 10%-95% | 10%-95% | 10%-95% | 10%-95% |
| Lifespan (50%Brightness) | >70,000Hours | >70,000Hours | >70,000Hours | >70,000Hours |
| Application | indoor/Outdoor | indoor/Outdoor | indoor/Outdoor | indoor/Outdoor |
| ingress Protection(Front/Rear) | IP65/43 | IP65/43 | IP65/43 | IP65/43 |
| Maintenance Mode | Rear | Rear | Rear | Rear |
Introduction:
P6.944 P8.928 P10.416mm Curved Curtain Mesh Rental led display
P6.944 P8.928 P10.416mm Curved Curtain Mesh Rental led display is used for digital background stages in studios, Event, and presents virtualscenes.
Features:
P8.928mm Curved Curtain Mesh Rental led display:
1. Super-slimand high transparency design, aluminum alloy cabinet, made the screen extremelylight
2. Perfect distribution of light, allows you always get the best vision inspite of the viewing angle changing;
Internally installed power supplier; using the high light SMD 3in1 LED, with abetter color combination, made the image more colorful;
3. Special Cabinet design, improved the refresh frequency better; aluminumalloy cabinet, promised the screen be strong enough and also light;
4. Easy installation design, allows for quick and convenient installation.
5. This product has widely used in high level entertainment bars, TV and danceshows. Its abstract images are able to represent illusive colors.
6.Standard Curved cabinet size 500mm x 500mm, and can make the Curved degree around 25degree.
Arise Technology Co., Ltd.
is a hightech company dedicated in providing professional LED displays & comprehensive optoelectronic solutions.
Arise Technology owns strong execution, brilliant development strategies and programs, sustainable creation based on market demand. We spare no effort to provide customers with market-oriented innovative products with good reliability, suitable solutions and all-round service. Arise’s main products includes outdoor and indoor full color LED display, outdoor and indoor rental LED displays, stadium/perimeter LED displays, LED Mesh/LED curtain displays, creative LED displays, LED banner signs, high-resolution full color LED display, creative LED displays,customized LED displays, and the whole display system and equipment. We are ready to providing LED display solutions for oversea and domestic advertisement media, building advertising and lighting, municipal administration, hospital, hotel, bank, traffic, sports, entertainment, show, exhibition, etc.
We Arise Technology regards integrity in company staff, customers and suppliers as the enterprise foundations, market demands as the guide. We guarantee quality with profession and dedication and use enterprise culture to fill our brand. We keep striving, forging ahead, creating to provide customer with strong and unremitting support and backup.
Arise Technology Co., Ltd
Email:gm@ariseled.com; Web:http://www.ariseled.com QQ:2329518805 Skype:ariseled
|
|

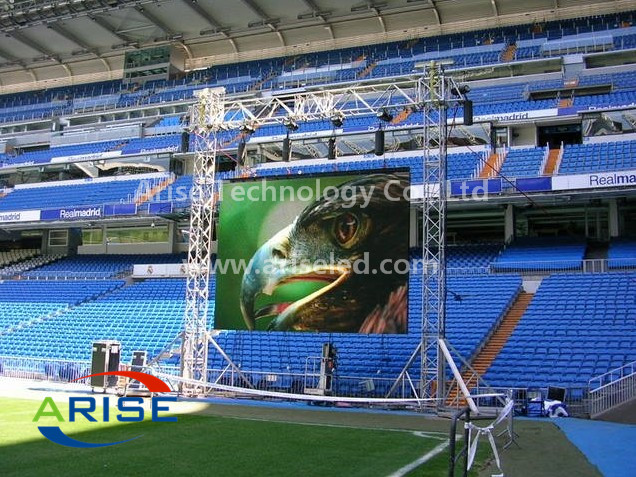

P6.944 P8.928 P10.416mm Curved Curtain Mesh Rental led display Stage,Event and TV Show Images
|
