RFI-P3.75mm,P4mm,P4.615mm,P5mm,P6mm led display screen wall,ARISELED
Arise Technology Co., Ltd
Web:http://www.ariseled.com
QQ:1327078259 Skype:ariseled
http://i.youku.com/ariseled
Product Parameters
| LED Encapsulation | Black SMD 2121 | Black SMD 2724 | Black SMD 2724 | Black SMD 3528 | Black SMD 3528 |
| Pixel Pitch | 3.75mm | 4mm | 4.615mm | 5mm | 6mm |
| Module Resolution(W*H) | 128* 128 | 120* 120 | 104* 104 | 96* 96 | 80* 80 |
| Pixel Configuration | 1R1G1B(3 in1) |
| Pixel Density | 71111 pixel/sqm | 62500 pixel/sqm | 46952 pixel/sqm | 40000 pixel/sqm | 27778 pixel/sqm |
| Driving Method | 1/16 Scan | 1/15 Scan | 1/13 Scan | 1/12 Scan | 1/10 Scan |
| Refresh Frequency | >2880Hz(Supporting high refresh rate and depending on system configuration) |
| Driving IC | Special constant current IC with high refresh rate and high gray scale |
| Grey Scale | >14BIT(According to system and IC equipped) |
| Module Size | 480mm*480mm |
| White Balance Brightness | >900cd/sqm | >1000cd/sqm | >1000cd/sqm | >1500cd/sqm | >1500cd/sqm |
| Color Temperature | 8000K ± 500(adjustable) |
| Viewing Angle | Horizontal Angle 140° Vertical Angle 120° |
| Optimal Viewing Distance | >4m | >4m | >4m | >4m | >4m |
| Working Voltage | AC 220V±10% |
| Max Power Consumption | 120W/pcs(White Balance) |
| Avg Power Consumption | 60W/pcs(Normal Working) |
| Lifetime | 50000 Hours |
| Operating Temperature | -10°C ~50°C |
1.With good lightening accordance and no mosaic.
2.Can play different formats of image files, flash, video signal from TV, video and other equipments.
3.Different video frequency can be changed freely at the same time, and the image can be enlarged and shrinked.
4.High brightness, and can be adjustable, meets the needs of customer's requirements.
5.Uses real pixels rather than virtual pixcels, better viewing effect .
Arise Technology Co., Ltd
One-stop LED display manufacturere
Web:http://www.ariseled.com
QQ:1327078259 Skype:ariseled
http://i.youku.com/ariseled
|
|

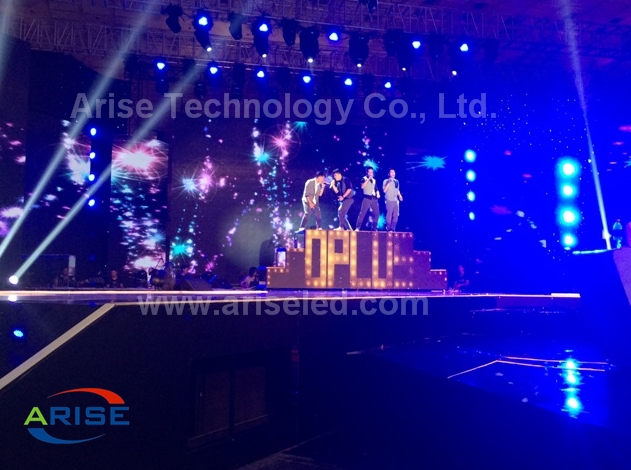

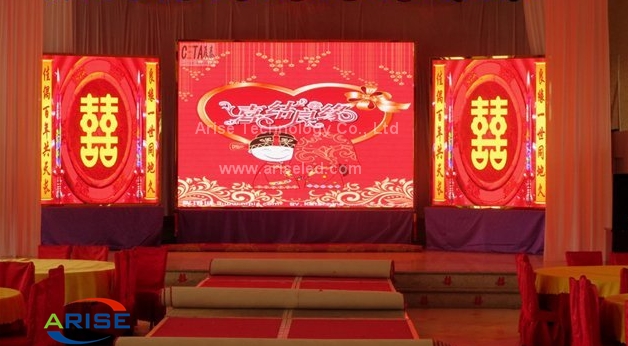

RFI-P3.75mm,P4mm,P4.615mm,P5mm,P6mm led display screen wall,ARISELED Images
|
